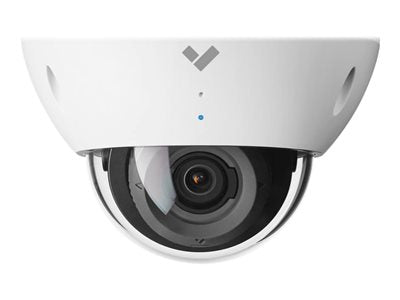

Verkada CD52-256-HW Indoor Dome Camera 5 MP 3x Optical Zoom 30m IR Range

Camera features

• Image Sensor: 1 / 2.8″ Progressive CMOS
• Sensor Resolution: 5MP (2688 x 1944)
• Lens Type: Varifocal; motorized zoom
• Focal Length: 2.8 - 8mm
• Aperture: F1.3 - F2.4
• Iris: P-Iris

Field of View (after LDC2)

• Horizontal: 38° - 105° (37° - 84°)
• Vertical: 29° - 77° (28° - 68°)
• Diagonal: 48° - 126° (45° - 97°)

Sensor Movement

• Tilt: 60°
• Pan: 355°
• Rotation: 350°

• Shutter Speed: 1 / 30 sec. to 1 / 10,000 sec.
• Day/Night: IR-cut filter for day and night function
• IR Cut Filter: Yes
• IR Range: 30m / 98ft

Minimum Illumination:

• 0.009 lux @ F1.9 (Color)
• 0 lux with IR Illuminators on

Onboard Storage

• Capacity: 256GB
• Card: MicroSD, SDXC

CPU

• Ambarella CV25S88

Standard video settings

• Compression: H.265, H.264
• Frame Rate: 24fps

Video Streaming Settings:

• High quality (HQ) - 1,500 Kbps
• Standard quality (SQ) - 300 Kbps

Historical Video Settings

• Adaptive quality

Standard audio settings

• Audio: Supported
• Audio Capacity: One-way audio
• Interface: Built-in microphone
• Effective Range: 5m / 15ft

Power and network

Power Input:

• With IR: IEEE 802.3af Type 1 PoE
• Without IR: IEEE 802.3af Type 1 PoE
• Extended temperature range: N/A

Power Consumption:

• With IR: 37-57V. 0.3-0.2A, 10.98W
• Without IR: 37-57V, 0.13-0.08A, 4.74W
• Extended temperature range: N/A

Connectivity

• RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps

RTSP

• RTSP 1.0
• RFC 2326
• Max concurrent streams: 2
• Audio support: Yes

General

• Operating Temperature: -10°C to 50°C / 14°F to 122°F
• Humidity: 0 to 90%
• Certifications: FCC, ICES, CE, UL, CB, NOM, KCC
• LED Indicator: System power and status indicator

Included Accessories:

• Setup guide, T10 security torx screwdriver, screw pack, mounting template

Mechanical

Weight

• Camera: 776g / 29.88oz
• Mount plate: 140g / 4.94oz

Dimensions

• Ø: 146mm / 5.75in, H: 104.3mm / 4.11in with mount plate
• Ø: 146mm / 5.75in, H: 99.8mm / 3.93in without mount plate

Body

• Aluminum, plastic dome trim
